Scanning Reflective, Transparent, and Dark Surfaces: A Guide to Challenging Materials

Every scanner owner eventually meets a part that simply won’t cooperate: a chrome bracket that throws light back at the sensor, a clear acrylic housing the laser passes straight through, or a matte black injection-molded cover that swallows every projected pattern. Scanning reflective, shiny, and dark surfaces is the single most common reason a 3D scan comes back sparse, noisy, or full of holes, and it frustrates new and experienced metrologists alike.

This guide explains why optical scanners struggle with these materials, how to recognize the three problem surface types before you waste a session, and the three reliable solutions practitioners use to get clean data: vanishing scanning sprays, retroreflective reference targets, and choosing the right scanner technology for the job. By the end you’ll have a repeatable workflow for the parts that used to ruin your afternoon.

Why Optical Scanners Fail on Shiny and Dark Materials

Structured-light and laser 3D scanners are fundamentally cameras that measure light. The scanner projects a known pattern, usually blue or white structured light or a laser line, onto the part. Its cameras then read how that pattern deforms across the surface and triangulate thousands of 3D points from the result. The entire measurement depends on one assumption: that light hits the surface and scatters back diffusely, evenly, in all directions, so the cameras see a crisp, predictable return.

Challenging surfaces break that assumption in three different ways. Reflective surfaces act like mirrors, so projected light bounces off at the angle of incidence instead of scattering. The camera either sees a blinding hot spot or nothing at all, and worse, it picks up secondary reflections that the software misinterprets as phantom geometry floating off the part. Transparent surfaces let the light pass through entirely, so there is no surface return to read; the scanner often locks onto whatever sits behind the glass instead. Dark and matte black surfaces absorb most of the incident light, starving the cameras of signal and leaving you with thin, noisy point clouds that drop out in shadowed areas.

The practical symptoms are familiar: holes and missing data, a noisy or “fuzzy” mesh, doubled or ghosted surfaces, and exposure that you can never quite balance, parts blow out white while recesses go black in the same frame. Pushing exposure or HDR settings helps at the margins, but it cannot fix a physics problem. To measure these parts accurately you have to change the optical behavior of the surface, give the scanner external references, or use hardware engineered to tolerate the return in the first place.

Identifying the Three Problem Surface Types

Diagnosing the surface before you scan saves time and prevents the temptation to blame the equipment. Most difficult parts fall into one of three categories, and each responds best to a slightly different combination of the solutions below.

Reflective surfaces: chrome, polished aluminum, glass-filled plastics

This is the broadest category and includes chrome and nickel plating, polished or machined aluminum, stainless steel, mirror-finished molds, and even glass-filled or high-gloss plastics that have a subtle specular sheen. The defining trait is specular reflection, where light reflects in a single direction rather than scattering. A polished aluminum housing might scan beautifully on its bead-blasted interior and fail completely on its mirror-finished exterior.

• Mirror finishes (chrome, polished molds) are the hardest, they behave almost entirely specularly.
• Brushed or satin metals are partially diffuse and sometimes scannable in the right orientation, but they still produce noise.
• Glossy plastics and clear-coated parts often look matte to the eye yet reflect enough to create dropout under structured light.

For nearly all reflective parts, a thin matting coating is the most direct fix, which is why vanishing sprays exist. We see these surfaces constantly in our reverse engineering services, where the original part is rarely a convenient matte finish.

Transparent surfaces: glass, clear plastics, optics

Glass, clear polycarbonate and acrylic, lenses, light pipes, fluid reservoirs, and optical components are the trickiest of all because there is no surface for the scanner to register. Light refracts through the part and reflects off internal features, so the scanner records a confused blend of front surface, back surface, and whatever lies behind the part on your table.

Transparent parts almost always require a coating, and for clear plastics destined for re-modeling you’ll want a fine, even layer so you don’t lose edge definition. For optics and components where pigment residue is unacceptable, a pigment-free spray is the right call. These parts are common in our metrology and 3D inspection work, where dimensional accuracy on a clear lens housing still has to be held to tight tolerances.

Dark and matte black surfaces

Black rubber, dark plastics, carbon fiber, anodized black aluminum, and painted matte-black components absorb light rather than reflecting it. Unlike shiny parts, dark surfaces don’t create false geometry, they simply return too little signal. The result is a thin point cloud that thickens unpredictably with exposure and leaves dropouts in any area angled away from the cameras.

Counterintuitively, very dark matte surfaces are sometimes scannable with a high-sensitivity scanner and long exposure where a shiny part is not, because at least the light isn’t bouncing off in the wrong direction. But for production-grade accuracy, a light matting coat is usually still the fastest path to a complete, low-noise scan. Carbon fiber is a special case: its woven specular highlights combine the worst of dark and reflective behavior and almost always needs spray.

Solution 1: Vanishing Scanning Sprays

The first and most universal solution is a thin matting coating that turns any problem surface into an ideal diffuse white target. Traditional matting powders and titanium-dioxide sprays work optically but leave a film you have to clean off, and on transparent or food-contact parts that residue is a real problem. Vanishing sprays solve both issues at once, which is why they’ve become the default for serious scanning shops.

How AESUB vanishing sprays work

AESUB sprays apply as an ultra-thin, uniform white layer, typically just a few microns thick, that gives the scanner a perfect diffuse surface. The defining feature is that the self-vanishing variants sublimate and disappear completely within minutes to a few hours, leaving no residue, no cleanup, and nothing to remove from delicate or assembled parts. That makes them ideal for parts you can’t easily wash, threaded features, electronics, and customer property you have to return untouched.

• AESUB Blue is the fast-vanishing workhorse, sublimating in roughly a few hours and clearing quickly, ideal for the majority of everyday scanning jobs.
• AESUB Orange stays on longer, making it the right choice for big parts, long inspection sessions, or warm/humid shop conditions where Blue would vanish before you finish.
• AESUB Violet is pigment-free, making it suitable for food-contact, medical, and optical parts where titanium-dioxide pigment is unwelcome.
• AESUB Diamond lays down an ultra-fine, very thin layer for the highest-resolution work, where even a few microns of coating thickness would compromise the measurement.

Single bottles start around $40.50, and bulk and aerosol-free options exist for production use. For a busy lab, the time saved on cleanup and the ability to scan customer parts without altering them usually justifies the cost on the first job.

Pigment-based vs. self-vanishing: tradeoffs

Not every coating is self-vanishing, and the choice involves real tradeoffs. The table below summarizes how the common options compare for scanning work.

Coating typeResidue / cleanupLayer thicknessBest for Titanium-dioxide developer sprayLeaves film; must be cleanedModerateQuick one-off scans where cleanup is easy AESUB self-vanishing (Blue/Orange)None; sublimatesThin, uniformCustomer parts, assemblies, threads, no-cleanup workflows AESUB Violet (pigment-free)None; no pigment residueThinFood-contact, medical, optical parts AESUB Diamond (ultra-fine)None; sublimatesUltra-thin (microns)High-resolution small-part scanning

The key engineering point is that every coating adds thickness, and thickness adds dimensional error. A heavy, uneven spray can add 10–20 microns or more per surface, which matters enormously on a tight-tolerance inspection and far less on a styling surface you’re reverse engineering. Self-vanishing sprays let you apply a thin, even coat and, for the finest work, AESUB Diamond keeps that layer down where it won’t swamp your accuracy budget.

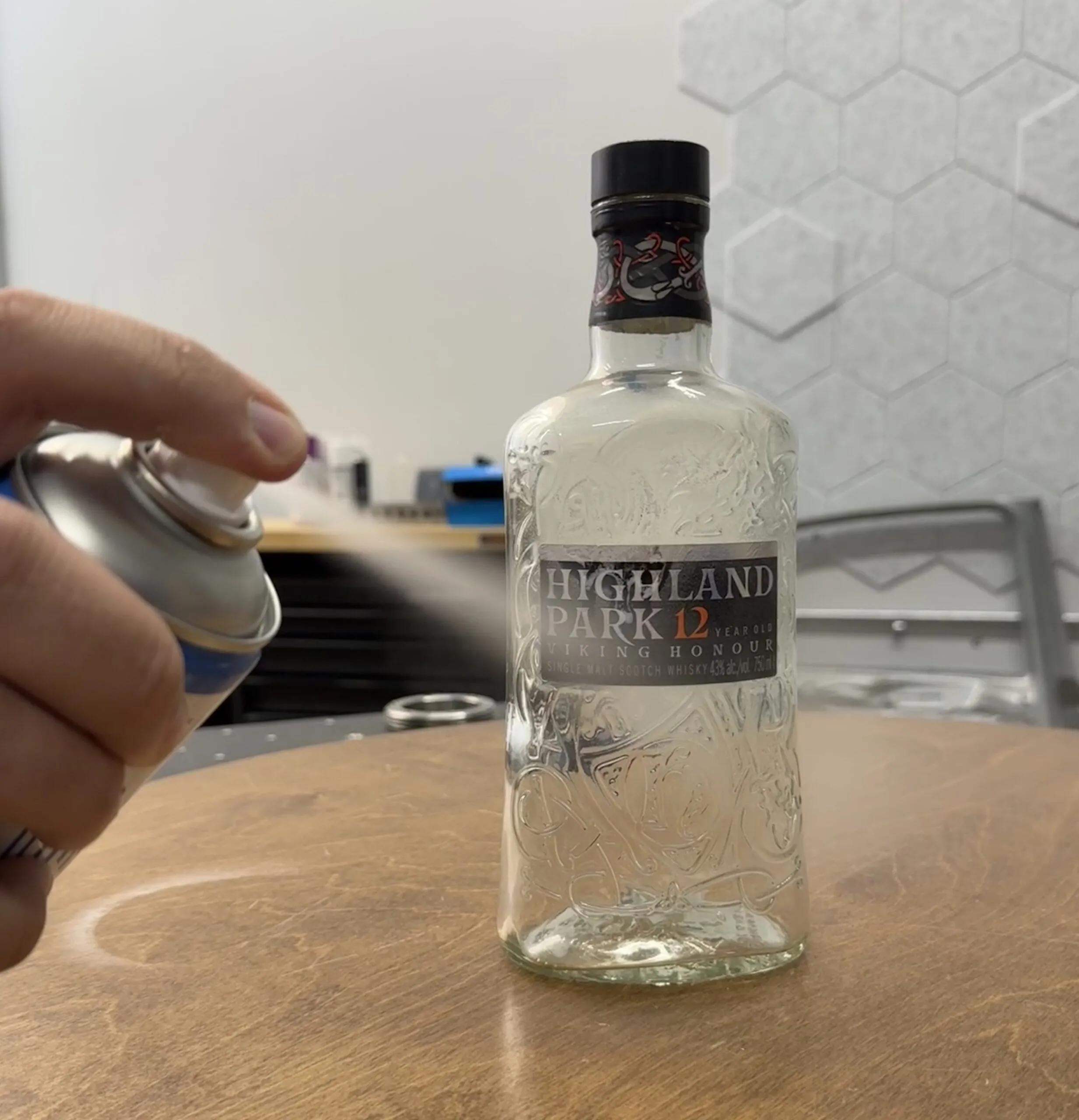

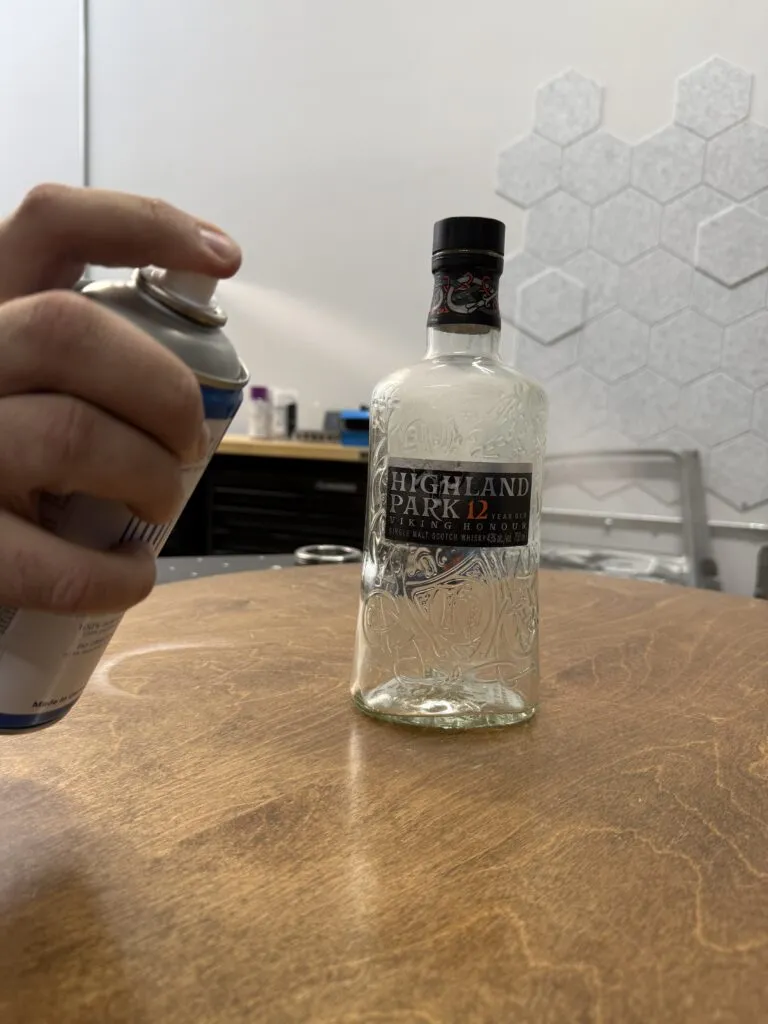

Application technique for consistent coverage

The spray is only as good as the application. Inconsistent, blotchy coverage trades one problem for another, so technique matters as much as product choice.

1. Clean and dry the part first. Dust and oil cause the coating to bead or flake.
2. Hold the can 15–25 cm (6–10 in) from the surface. Too close pools the spray; too far makes it grainy.
3. Apply in light, sweeping passes. Two or three thin coats beat one heavy one every time, and keep the can moving to avoid pooling in recesses.
4. Aim for the thinnest layer that kills the shine. The moment the surface reads as uniform matte white to your eye, stop.
5. Let it flash off for 30–60 seconds before scanning so the layer is dry and even.
6. Mind the clock on self-vanishing sprays. Plan your scan path so you finish before the coat starts to thin, and re-coat sections on long jobs or step up to AESUB Orange.

Spray in a ventilated area and follow the safety data sheet. Practiced applicators can coat and complete a part faster than they could have cleaned a residue spray afterward, which is the real productivity win.

Solution 2: Retroreflective Reference Targets

Spray fixes the surface; targets fix the tracking. Many laser and structured-light systems, especially metrology-grade laser trackers and tracking-based scanners, use small adhesive retroreflective dots, often called reference or registration targets, to lock the scanner’s position in space. The scanner finds these high-contrast dots reliably even when the surrounding surface is misbehaving, and uses them to stitch frames together and hold global accuracy across a large part.

Targets solve a different half of the problem than spray. On a large reflective panel, spray gives the cameras a readable surface, but the scanner can still lose its positional lock as it sweeps across a featureless, glare-prone area. Retroreflective targets give it stable anchor points to triangulate against, dramatically reducing drift and the accumulated error that shows up as warping on big assemblies. In practice the two techniques are often combined: targets for global registration, spray for local surface detail.

• Place targets in a random, non-collinear pattern with enough density that the scanner always sees several at once, but avoid covering critical features you need to measure.
• Use the right target size for your scanner’s resolution and standoff; oversized dots waste coverage, undersized ones won’t be detected.
• Keep targets off measurement surfaces where possible, or scan, then remove and patch the small holes they leave.
• Pair targets with photogrammetry on very large parts to establish a high-accuracy reference frame before scanning.

Tracking-based systems such as the Scanology NimbleTrack wireless scanner are built around this marker-based workflow and excel on the large, shiny, or geometrically complex parts where handheld stitching alone would drift. For the largest layouts, a portable measuring arm (portable CMM) can establish hard reference points that anchor the whole inspection.

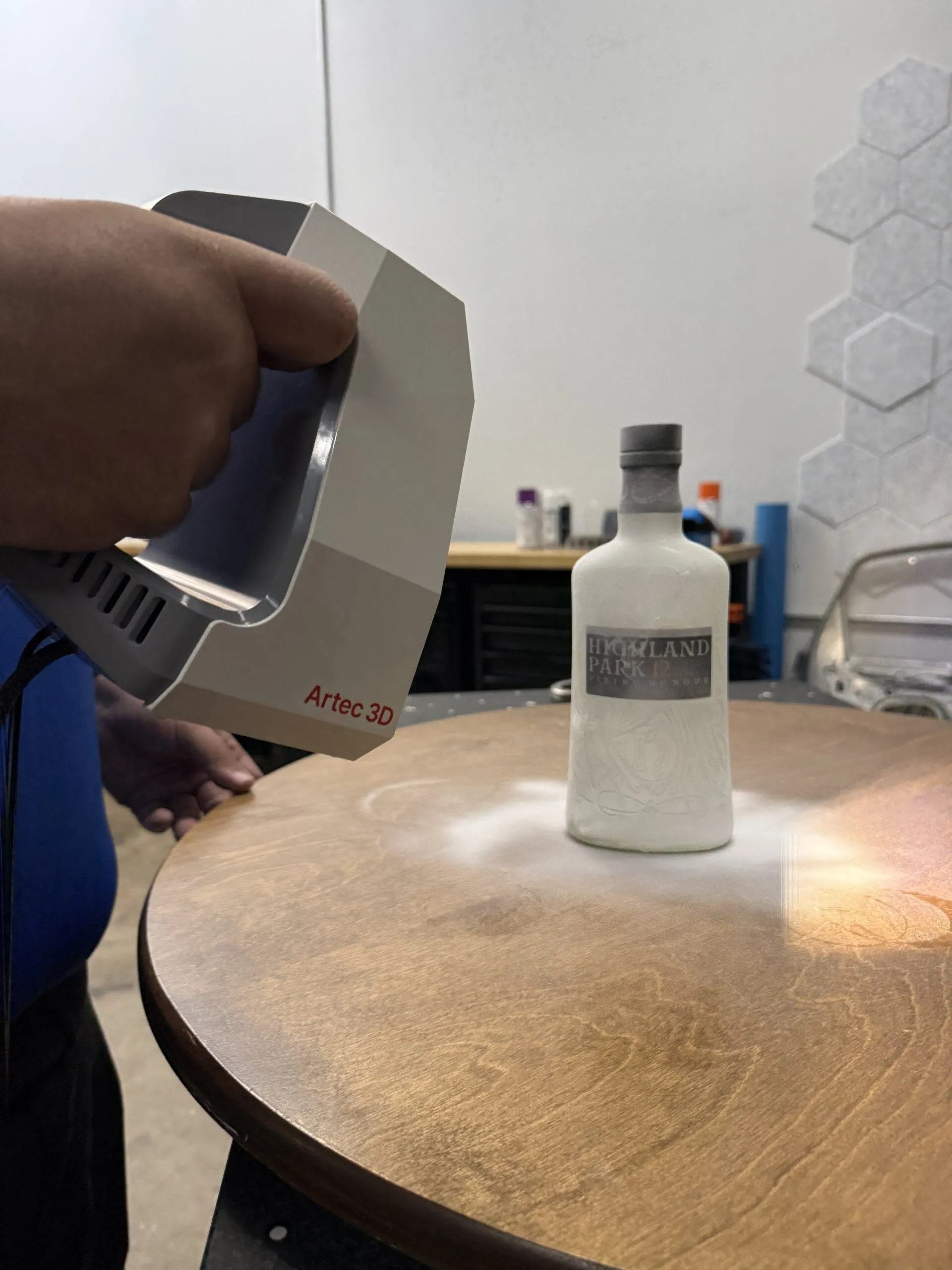

Solution 3: Choosing a Scanner Built for Challenging Surfaces

The third solution is hardware. Not all scanners struggle equally with difficult materials, and a scanner engineered with a strong light source, high dynamic range, and intelligent multi-exposure capture can read surfaces that would defeat a budget unit, sometimes with little or no spray at all. If you scan reflective, dark, or transparent parts regularly, scanner choice is a strategic decision, not just a budget one.

Several characteristics separate scanners that handle hard surfaces from those that don’t:

• Blue laser or blue LED sources resist ambient light and penetrate dark surfaces better than older white-light or red-laser systems.
• Multi-line laser and HDR capture let the scanner take several exposures per frame and merge them, so a chrome highlight and a black recess can both resolve in one pass.
• High resolution and small point spacing matter for fine detail and for getting usable data through a thin spray coat.
• Marker tracking support ties back to Solution 2 for large or featureless parts.

Scanner profileStrength on hard surfacesTypical use High-res blue-laser (e.g. Artec Spider II)Excellent on small, intricate, shiny parts; fine detailSmall precision components, electronics, dental/medical Wireless handheld (e.g. Artec Leo)Strong all-rounder; good dynamic range, untetheredMid-size parts, field work, mixed surfaces Marker-tracking laser (e.g. NimbleTrack)Best on large, reflective, complex assembliesAutomotive, large fabrications, body panels

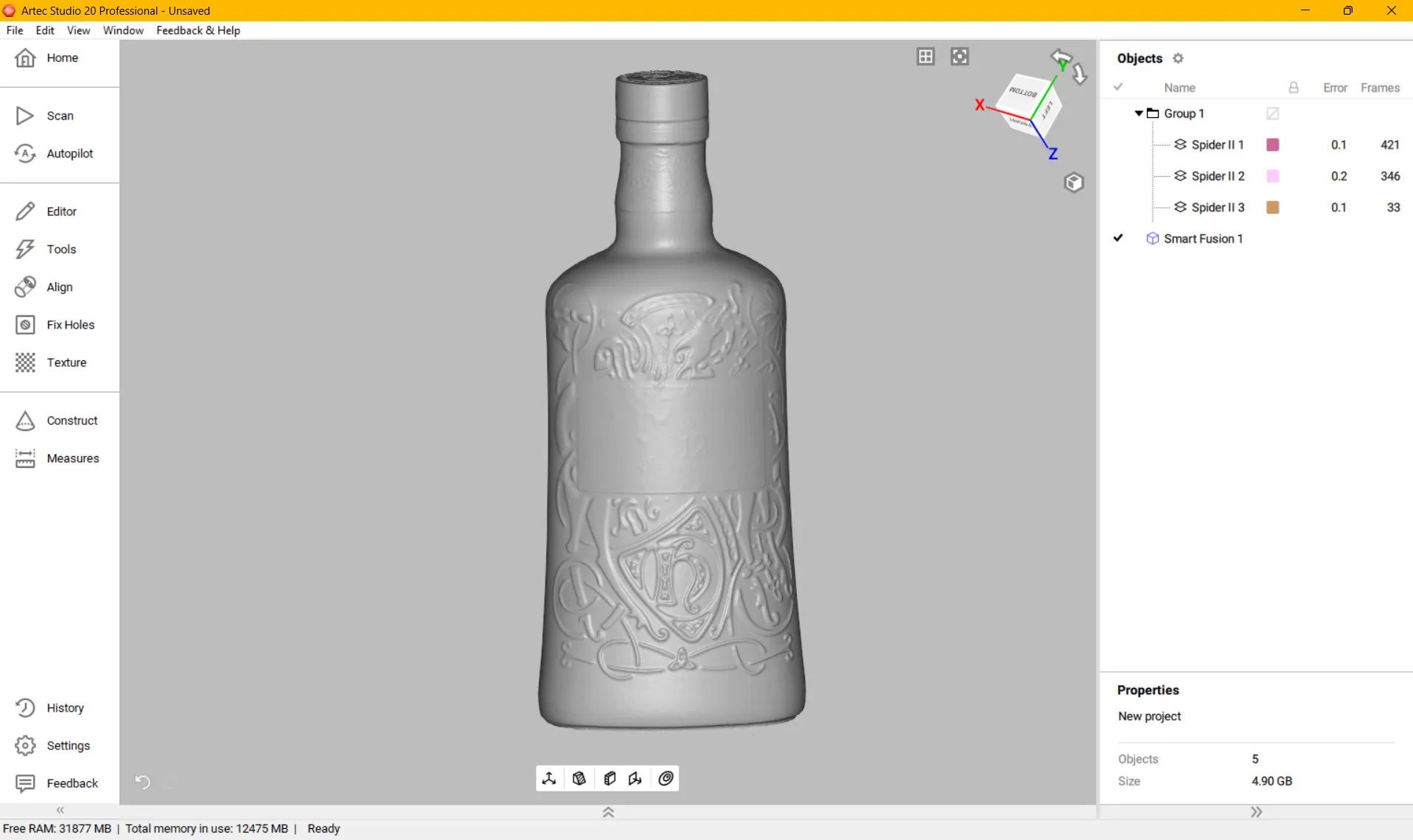

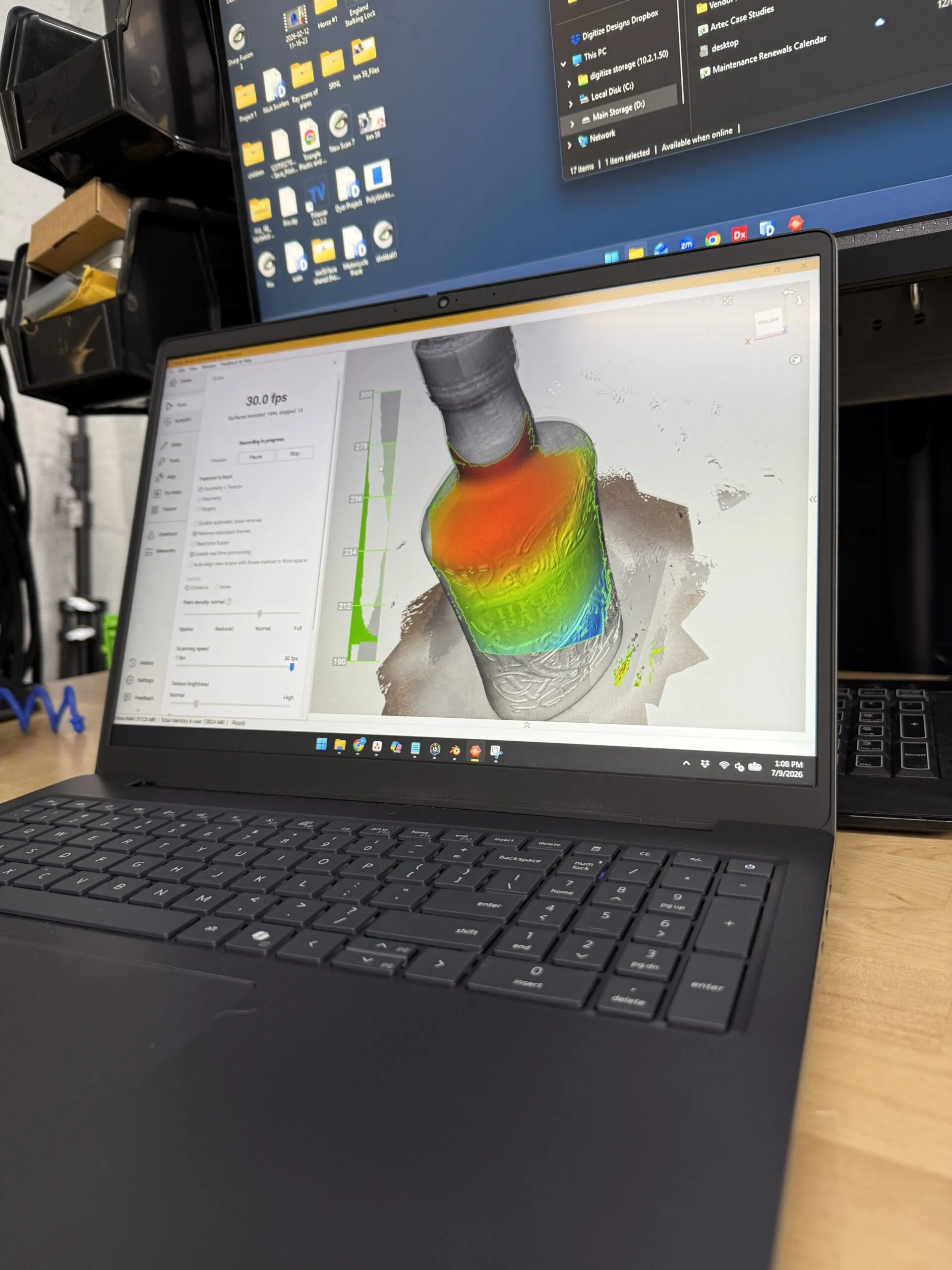

For fine, glossy, small parts, a high-resolution blue-laser system like the Artec Spider II delivers detail through a minimal spray coat that lesser scanners can’t match. If you’re not sure which platform fits your mix of materials, browse our portable and handheld 3D scanners, or talk to our team about a side-by-side demo on your own difficult parts.

Spray-Free Scanning: When Is It Actually Possible?

It’s a fair question, and the honest answer is “sometimes.” Vendors love to advertise spray-free scanning, and modern high-dynamic-range scanners genuinely can capture many surfaces that once demanded a coat. But spray-free is a spectrum, not a guarantee, and knowing where your part falls saves disappointment.

You can often scan without spray when the part is matte to semi-gloss, light to mid-toned, and you’re using a capable HDR scanner; when tolerances are loose enough to tolerate some surface noise; or when the part is dark but matte and your scanner has high sensitivity. You will almost always need spray on true mirror finishes, clear and transparent parts, deep glossy blacks, and any tight-tolerance inspection where surface noise would eat your accuracy budget. The rule of thumb our engineers use: if the surface throws a visible glare hot spot or you can see through it, reach for the spray.

Spray-free scanning is a real capability for the right part on the right scanner, but it is not a substitute for technique. The fastest path to a clean scan is matching the method to the surface, not forcing one approach onto every job.

There’s also a cost-and-time calculation. A thin coat of self-vanishing spray often produces a cleaner scan in one pass than fighting a marginal surface through three. When throughput matters, spraying can be the faster choice even when spray-free is technically possible.

Best Practices Checklist for Scanning Difficult Materials

Pulling it together, here is the workflow practitioners follow when a challenging part lands on the bench. Run through it before you start scanning, not after the data comes back bad.

1. Diagnose the surface. Is it reflective, transparent, dark, or a combination? Carbon fiber and gloss-black are combinations.
2. Decide if spray is needed. Visible glare or see-through means yes. Tight tolerance also leans toward yes, with a thin coat.
3. Pick the right spray. Blue for everyday work, Orange for long or warm sessions, Violet for food/medical/optical, Diamond for high-resolution detail.
4. Apply thin and even. Multiple light passes, thinnest coat that kills the shine, let it flash off.
5. Add reference targets on large, featureless, or reflective parts to anchor registration and prevent drift.
6. Match the scanner to the part. Blue-laser and HDR systems for hard surfaces; high resolution for fine detail and small parts.
7. Tune exposure and standoff, then verify a small test patch before committing to the full part.
8. Account for coating thickness in your tolerance budget, and document it for inspection traceability.

Follow this sequence and the parts that used to produce holey, noisy scans become routine. The combination of a good coating, smart use of targets, and the right scanner covers virtually every difficult material you’ll encounter in manufacturing and reverse engineering.
