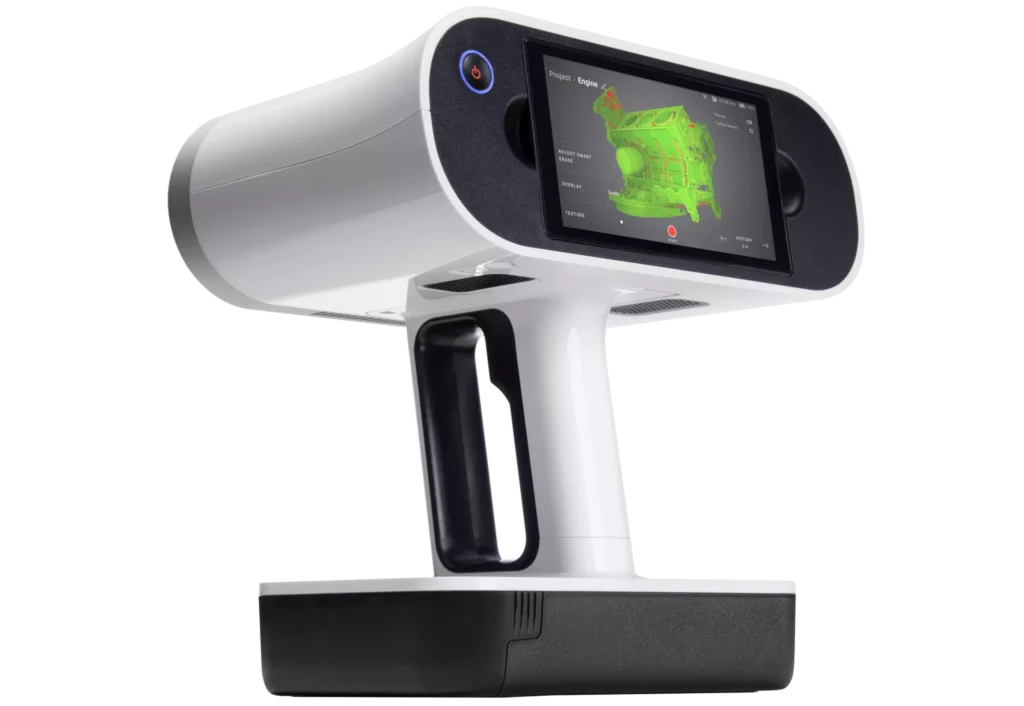

Artec Leo

Artec Leo

Artec Leo is the only wireless and fully standalone professional 3D scanner designed to make scanning as easy and effortless as possible.

With the new NVIDIA Jetson TX2 processor onboard, 5” HD built-in display and battery, it’s the ultimate all-in-one 3D scanning solution for fast, accurate, and high-quality data capture.

  • Speed
  • Resolution & Accuracy
  • Color Data Capture

Categories: ,

Get 10% Off on your first order of 3D scanning accessories

Setup, Support & Training Included by certified engineers

Artec Leo Full Scanning Demonstration Video

In this video, we demonstrate the scanning capabilities of the Artec Leo. We scan and process a standard accent chair as well as a small pelican case. The sample data captured in this video can be downloaded by clicking the button below.

Artec Leo: The Ultimate Cable-Free Scanner with Advanced Features

Artec Leo is a scanner that offers 100% cable-free scanning and data transfer. It boasts a compact design, long-lasting battery, interactive 5.5″ touch screen, scan-to-cloud capability, WiFi connectivity, and remote control functionality, all built into the device itself, eliminating the need for additional devices, power cables, or data cables. Artec Leo’s intuitive user interface on the touch screen allows you to manage the device, scanning process, and scan data efficiently. It provides real-time feedback, helping you identify areas that require attention and ensuring you achieve optimal scanning results.

blank

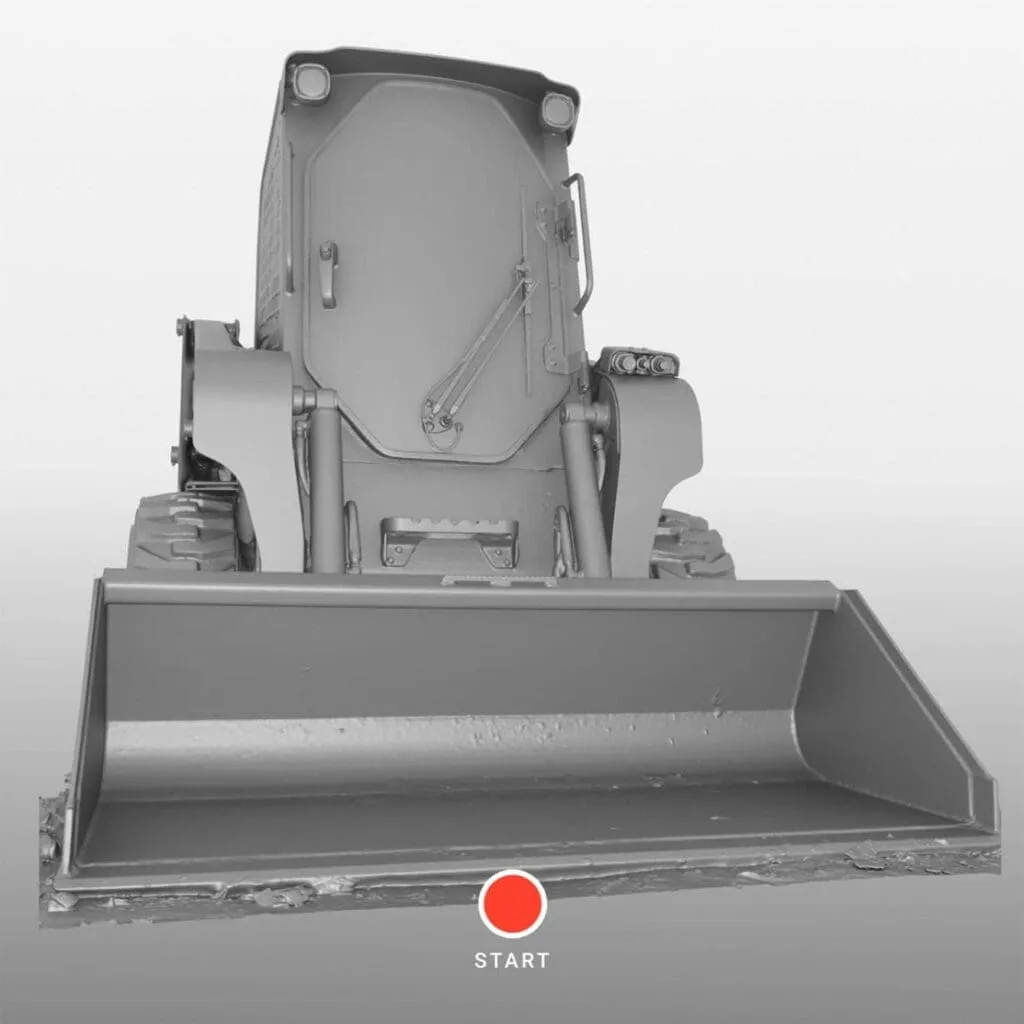

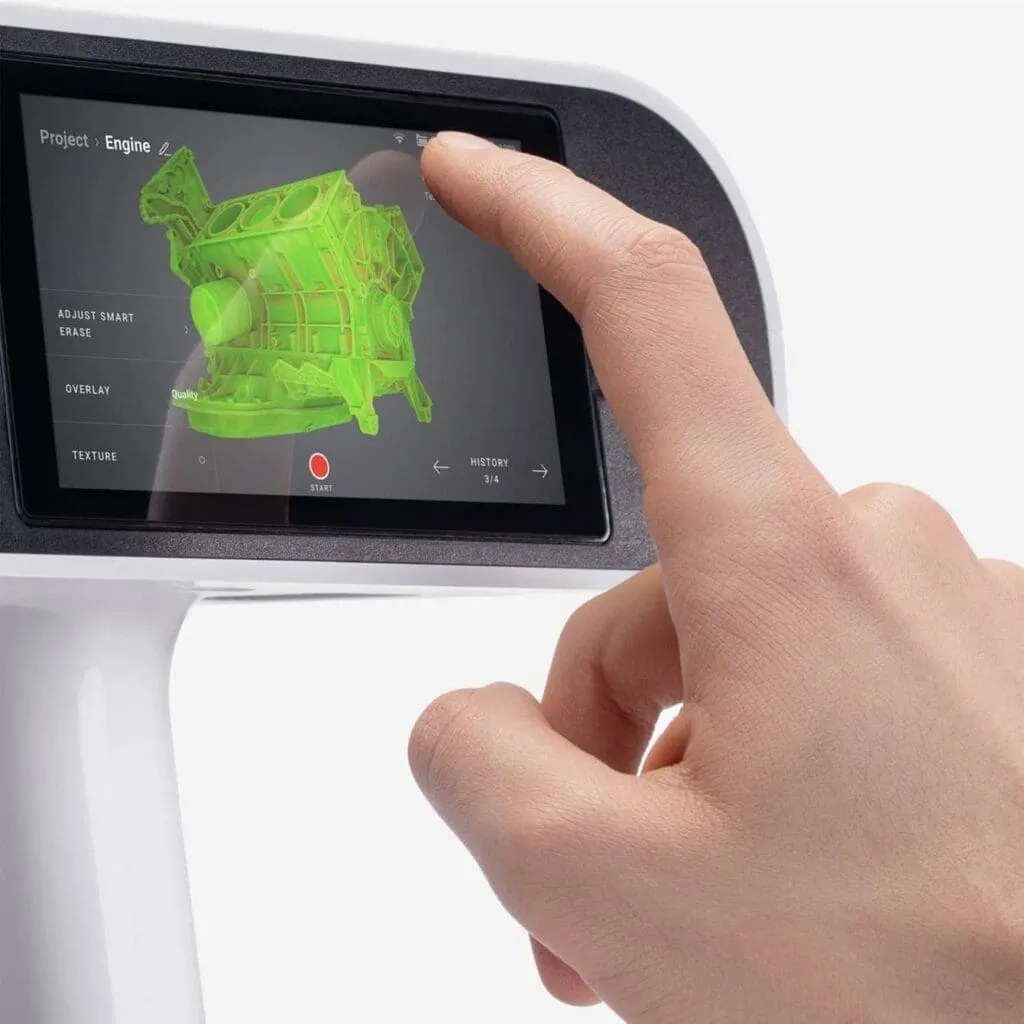

Artec Leo’s Cutting-Edge Advantages: Real-Time 3D Model Preview and Flexible Tilting Screen

Artec Leo’s Innovative Features: Real-Time 3D Model Preview and Tilting Screen for Enhanced Scanning Freedom. Leo’s interactive touch screen offers a real-time replica of your scan data, eliminating the need for tethering to a laptop. Visual guides indicate data quality in various scan regions. Additionally, Leo’s ergonomic design allows scanning in tight spaces and awkward angles, while its tilting screen enhances flexibility and freedom of movement, expanding the scanner’s usability.

blank

See for yourself the remarkable capabilities of the Artec Leo with a live demo.

Discover the Power of the Artec Leo! Schedule Your Live Demo Now and Experience Next-Level 3D Scanning.

Why Choose The Artec Leo?

The 2022 Artec Leo remains at a stable and optimal temperature throughout the scanning process to bring your accuracy to the next level, while a calibration certificate and Leo Calibration Kit guarantee top quality is maintained every step of the way.

1

Powerful scanning. Unprecedented performance.

Powered by the most power-efficient embedded NVIDIA Jetson TX2 processor and state-of-the-art algorithms, Artec Leo is like no other scanner when it comes to performance, accuracy, and durability.

2

HD Mode for 2x higher resolution

The resolution of your scan data steps up 2x while removing noise for you, leaving you with the tidiest noise-free 3D model. Hard-to-reach areas and difficult-to-scan surfaces such as thin ridges or sharp corners are now easier than ever to capture, with enhanced reconstruction and improvements to edge curvatures. Forget about texture bias too – there’s no room for false geometry from high-contrast texture here. Expect true-to-life 3D models in stunningly high resolution.

3

For excellent geometry and color representation.

We’ve packed Artec Leo with advanced tech to capture rich texture, adjust to lighting conditions, and perform precise texture-to-geometry mapping. Artec Leo has a two-in-one optical system, an integrated supercomputer on a module, position sensors with 9 DoF, and VCSEL light technology that varies flash intensity.

Technical Specifications

The Artec Leo
DisplayBuilt-in touch panel screen
ProcessingOn-board real time processing
Volume capture zone160,000 cm³
3D reconstruction rate, up to80 FPS
3D resolution, up to0.2 mm
3D point accuracy, up to0.1 mm
Color resolution2.3 mp
Structured-light sourceVCSEL
Position sensorsBuilt-in 9 DoF inertial system
Multi-core processingNVIDIA Jetson TX2
Power sourceIn-built exchangeable battery
ConnectivityWireless
blank

Discover everything you need to know about the Artec Leo with our comprehensive specification breakdown.

Download Brochure (PDF)

Frequently Asked Questions

Fortified with AI-empowered algorithms, HD Mode facilitates the creation of 3D models that exhibit greater clarity and comprehensive detail. In this mode, the Artec Leo boasts a resolution that surpasses the conventional mode by twice as much, delivering a precise resolution of up to 0.2 mm. This ensures that Leo can adeptly grasp detailed components and surfaces that are typically problematic.

Not at all! While HD Mode is a notable feature of Artec Leo, it’s also available in the Artec Eva. To harness this advanced capability, ensure your device is paired with Artec Studio version 15.1 or later.

Absolutely! Artec Leo utilizes the non-invasive white structured light technology, ensuring it poses no risk when scanning humans or animals. It’s paramount for the subject to maintain stability during the scan to obtain the best model. While you can guide humans to stay still, animals present a unique challenge. The optimal approach for animals is to scan during their moments of rest.

The Artec Leo epitomizes user-friendliness. There’s no need for elaborate setups, targets, or calibrations. It’s engineered with a potent blend of geometry and texture tracking, enabling the capture of even those objects that are less distinct. With its capacity to gather dual data sets for tracking and post-process operations, Artec Leo promises a streamlined 3D scanning adventure, overshadowing many of its target-dependent counterparts.

Thanks to its state-of-the-art target-independent tracking system, Artec Leo promises a frictionless scanning phase and a rapid 3D data assimilation process, making it an attractive tool for industry experts.

Artec Leo is designed to work in harmony with Artec Studio, the dedicated software optimized for capturing, processing, and handling 3D data. Beyond Artec Studio, Leo’s output can be integrated with various CAD and CAM applications, offering flexibility across diverse industrial domains. It’s always a prudent step to verify software compatibility before merging workflows.
