SCANTECH SIMSCAN 42 – Demo Scanner

Name: SCANTECH SIMSCAN 42 - Demo Scanner
SKU: 54321-2
Price: 20000.00 USD
Availability: InStock

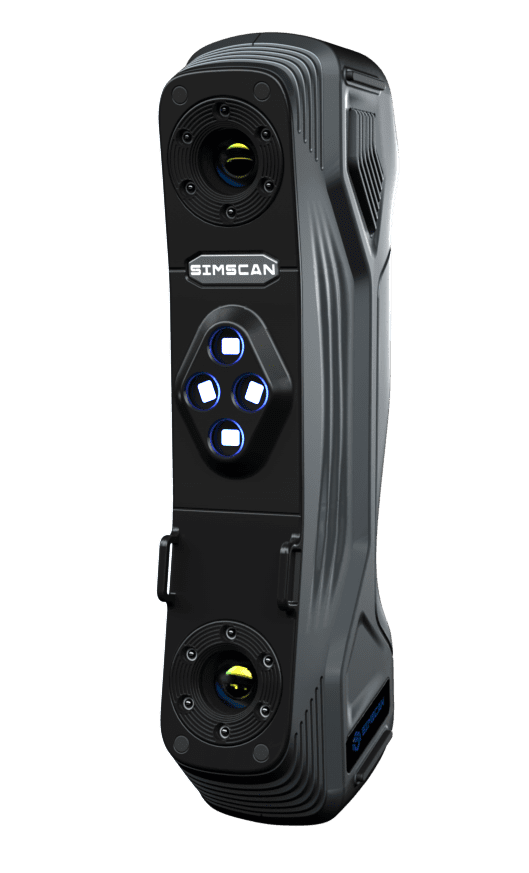

The SCANTECH SIMSCAN 42 Demo Unit is a palm-sized, portable 3D scanner specifically engineered for scanning tight and challenging-to-reach areas.

Its full-metal housing ensures exceptional durability, and its compact design and robust performance make it a disruptive innovation in the realm of professional 3D scanners. Getting this demo unit allows you to experience the cutting-edge technology firsthand at an even more affordable price.

Single-handed control
Ultra portable
Narrow-space Measuring Booster
Aesthetic design

$20,000.00

In stock.

Order in the next and your product will be shipped Friday, Dec 20

2 in stock Only 2 Left Out of Stock

SKU: 54321-2 Categories: 3D Scanners, Demo 3D Scanners, SCANTECH

Only 2 Left

Schedule a Demo

Get 5% Off on your first order of 3D scanning accessories

Setup, Support & Training Included by certified engineers

Single-handed Control, Ultra Portable

SCANTECH SIMSCAN, the only hand-sized 3D scanner in the market so far, is a disruptive innovation of the traditional 3D scanners’ structure and a revolutionary product in 3D optical metrology industry.

Single-handed Control

The SCANTECH SIMSCAN portable 3D scanner boasts a full-metal housing that offers exceptional protection and durability. With a weight of only 570 g and dimensions of 203 × 80 × 44 mm, it provides unparalleled ease of use, allowing for effortless one-handed scanning of any object.

Because of its hollow structure, it dissipates heat more effectively. The 3D scanner is efficient at performing measurements with low power consumption. Thanks to its versatility, it can meet a wide range of needs of 3D measurements.

Narrow-space Measuring Booster

Compared with its competitors, SCANTECH SIMSCAN has a much shorter camera distance of 130 mm, which forms a steeper view angle to 3D scan narrow spaces. Therefore, SIMSCAN is more capable of capturing accurate and complete data in hard-to-reach areas like deep grooves and ensures users to capture full-field data.

Remarkable Portability

SCANTECH SIMSCAN boasts a compact size and excellent portability. No matter in narrow spaces or under huge objects, SCANTECH SIMSCAN portable 3D scanner can conduct 3D measurements anywhere and anytime. When paired with wireless communication link AirGo Pro, it supports mobile 3D scanning and data viewing for truly flexible, reliable, and effective measurement experiences.

With its multifunctional buttons, users can switch between different modes at any time. Its single-handed operation allows flexible measuring, and its ergonomic design makes it comfortable to use. Designed with an anti-slip housing and a strap, it is safe for users to scan in all directions freely.

Efficiency and Precision with SCANTECH SIMSCAN

SCANTECH SIMSCAN, a palm-sized portable 3D scanner, is revolutionizing 3D scanning in hard-to-reach areas. Its full-metal housing ensures robustness, and it has won prestigious design awards for its compact size and performance. This metrology-grade 3D scanner offers a high-quality scanning experience in narrow spaces and large-scale applications, delivering detailed 3D models rapidly. With a scanning rate of up to 2.8 million measurements per second and compatibility with automated 3D measurement systems, SCANTECH SIMSCAN guarantees efficiency and precision in every scan, making it an invaluable tool for a wide range of industries.

Why Choose The SCANTECH SIMSCAN 42?

Handheld 3D scanners have become indispensable tools for professionals across various industries, and for a good reason. They offer unparalleled flexibility and freedom of movement, allowing you to effortlessly capture intricate details, complex geometries, and challenging surfaces. Here’s why our handheld 3D scanners are the preferred choice for professionals:

1

Compact and Versatile

SCANTECH SIMSCAN 42’s palm-sized design allows it to access narrow and hard-to-reach areas with ease, making it ideal for a wide range of applications. Its full-metal housing ensures durability and reliability, and its compact size doesn’t compromise on performance.

2

High-Speed Scanning

With a scanning rate of up to 2.8 million measurements per second, SCANTECH SIMSCAN 42 offers rapid and efficient 3D digitization. Its sophisticated algorithm ensures a smooth scanning experience, enabling users to capture intricate details quickly.

3

Automation Ready

Pair SCANTECH SIMSCAN 42 with SCANTECH’s automated 3D measurement system for continuous, high-batch measurements. This automation enhances manufacturing efficiency and overcomes the limitations of traditional methods, making it a valuable asset in various industries.

Technical Specifications

Type		SIMSCAN 42	SIMSCAN 30	SIMSCAN 22
Scan mode	Ultra-fast scanning	17 blue laser crosses	11 blue laser crosses	7 blue laser crosses
	Hyperfine scanning		7 blue parallel laser lines
	Deep hole scanning		1 extra blue laser line
Accuracy(1)		Up to 0.020 mm	Up to 0.020 mm	Up to 0.020 mm
Scanning rate		Up to 2,800,000 measurements/s	Up to 2,020,000 measurements/s	Up to 1,250,000 measurements/s
Scanning area		Up to 700 mm × 600 mm	Up to 650 mm × 550 mm	Up to 650 mm × 550 mm
Laser class		CLASSⅡ (eye-safe)	CLASSⅡ (eye-safe)	CLASSⅡ (eye-safe)
Resolution		Up to 0.020 mm	Up to 0.020 mm	Up to 0.020 mm
Volume accuracy(2)	Standard	0.015 mm + 0.035 mm/m	0.015 mm + 0.035 mm/m	0.015 mm + 0.035 mm/m
Volume accuracy(2)	Paired with MSCAN-L15	0.015 mm + 0.012 mm/m	0.015 mm + 0.012 mm/m	0.015 mm + 0.012 mm/m
Stand-off distance		300 mm	300 mm	300 mm
Depth of field		550 mm	550 mm	550 mm
Output formats		pj3, asc, igs, txt, mk2, umk, stl, ply, obj	pj3, asc, igs, txt, mk2, umk, stl, ply, obj	pj3, asc, igs, txt, mk2, umk, stl, ply, obj
Operating temperature range		-10℃–40℃	-10℃–40℃	-10℃–40℃
Interface mode		USB 3.0	USB 3.0	USB 3.0
Dimensions		203 mm × 80 mm × 44 mm	203 mm × 80 mm × 44 mm	203 mm × 80 mm × 44 mm
Weight		570 g	570 g	570 g
Patents		CN204329903U, CN104501740B, CN204854633U, CN204944431U, CN204902788U, CN105068384B, CN105049664B, CN204902784U, CN204902785U, CN106403845B, CN110030946B, CN212300269U, CN211904059U, CN211696268U, CN306053019S, CN212606697U, CN306321502S

Download Brochure in PDF

Discover everything you need to know about SCANTECH SIMSCAN 42 with our
comprehensive specification breakdown.

Download Brochure (PDF)

Frequently Asked Questions

The SIMSCAN-42 is designed as a pocket-sized 3D scanner, making it convenient for portable use without compromising precision.

The device offers rapid data processing, allowing users to obtain high-precision 3D data in seconds.

Indeed, the device is paired with its dedicated software that provides intelligent scanning paths and automatic data alignment, enhancing the overall scanning experience.

Purchasing a demo scanner from Digitize Designs offers a fantastic opportunity to acquire a high-quality product at a reduced price. Our demo units are meticulously maintained, ensuring they are in excellent condition, and come with significant discounts. Enjoy the perfect blend of quality and savings with our demo scanners.

Additional information

Additional information

Types	Handheld 3D Scanner
Industry	Aerospace, Archaeology & Heritage Preservation, Architecture, Engineering & Construction (AEC), Automotive, Education & Research, Entertainment & Media, Forensics & Law Enforcement, Healthcare & Medical, Manufacturing & Design, Military & Defense, Transportation & Warehousing
Application	Aerodynamics & Hydrodynamics Analysis, Design and Modeling, Digital Preservation, Interactive Learning & Training, Metrology, Quality Control & Inspection, Rapid Prototyping, Reverse Engineering, Safety & Compliance Analysis, Site Surveying & Documentation, Tooling and Mold Creation, Virtual Reality & Augmented Reality Content Creation, Wear, Damage, and Condition Analysis
Compatible Software	DezignWorks Pro Mesh for Autodesk Inventor, Geomagic Control X, Geomagic Control X Essentials, Geomagic Design X, Geomagic Design X Essentials, Mesh2Surface SolidWorks Plugin, Polyworks \| Inspector DezignWorks 10. Quicksurface, Pro Mesh for SolidWorks, QuickSurface
Accessories	AESUB Scan Spray, Frames, Targets / Dots, Turntables
