The SCANTECH KSCAN-Magic II is an advanced composite 3D scanner, integrating infrared and blue lasers for versatile applications.

It offers five operational modes, including large-area infrared scanning and ultra-fast blue laser scanning, suitable for detailed capture of complex objects. This scanner ensures high accuracy and speed, making it ideal for various industrial uses, from reverse engineering to quality inspection.

  • Effortless efficiency
  • Innovative infrared laser
  • Extreme-clear details
  • Personalized adjustment

Categories: ,

Get 5% Off on your first order of 3D scanning accessories

Setup, Support & Training Included by certified engineers

SCANTECH KSCAN-Magic II Demonstration Video

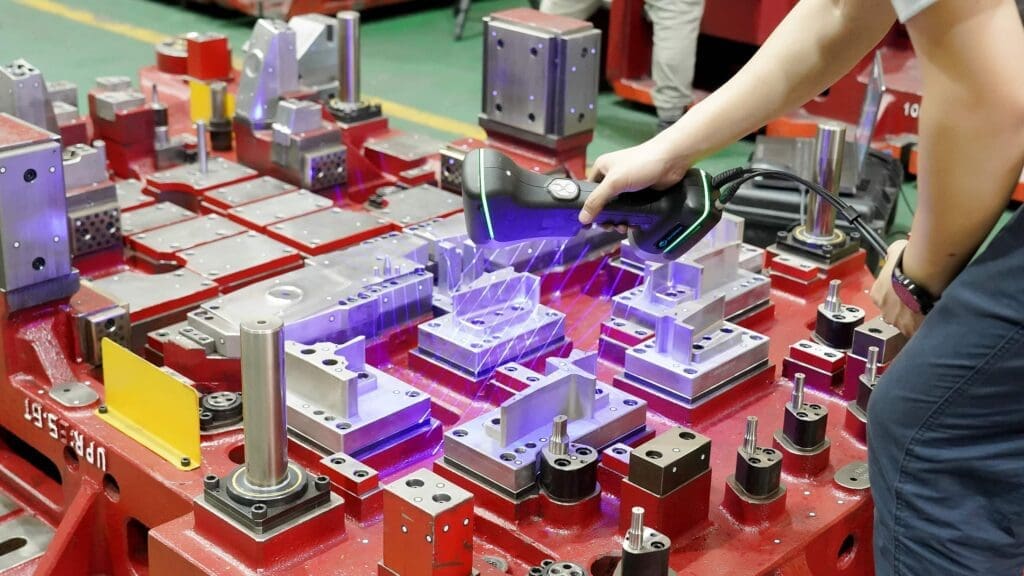

Get 3D data of complex surfaces

Innovative Design of SCANTECH KSCAN-Magic II

The SCANTECH KSCAN-Magic II is a testament to cutting-edge technology in the 3D scanning industry, representing a significant advancement in composite 3D scanners. This innovative device integrates both infrared and blue laser technologies, making it exceptionally versatile for a wide range of applications. The KSCAN-Magic II features five distinct operating modes, each tailored to specific scanning needs: large-area scanning with parallel infrared lasers for extensive coverage, ultra-fast scanning with blue laser crosses, hyperfine scanning with parallel blue lasers for detailed capture, deep-hole scanning for hard-to-reach areas, and a comprehensive built-in photogrammetry system for large-scale projects. This multi-functional scanner is engineered to provide high precision and efficiency in 3D measurement, making it an invaluable tool in modern industrial and design applications.

Advanced Capabilities of SCANTECH KSCAN-Magic II

The SCANTECH KSCAN-Magic II excels in delivering metrology-grade measurements with its advanced multi-spectrum 3D scanning and calibration technique. It features an impressive scanning rate of up to 4,150,000 measurements per second and maintains accuracy up to 0.020 mm. The scanner’s depth of field reaches 925 mm, facilitating extensive scanning with high accuracy. Its large-area scanning capability is powered by 11 infrared parallel laser lines, covering an impressive area of 1440 mm × 860 mm. Additionally, the KSCAN-Magic II’s flexibility is highlighted in its ability to perform in various environments, including scanning reflective and black surfaces with ease. Equipped with optional modules for intelligent edge inspection, contact probing, pipe measurement, and compatibility with automated 3D systems, the KSCAN-Magic II is a versatile and powerful solution for diverse industrial scanning needs.

blank

See for yourself the remarkable capabilities of the SCANTECH KSCAN-Magic II with a live demo.

Unlock the magic of 3D scanning with the SCANTECH KSCAN-Magic II. Schedule a live demo now to experience its cutting-edge capabilities and discover how it can revolutionize your scanning and measurement processes.

Why Choose The SCANTECH KSCAN-Magic II?

1

Versatile Scanning Modes

The KSCAN-Magic II stands out with its five distinct scanning modes. It offers large-area scanning with infrared lasers, ultra-fast data capture with blue laser crosses, hyperfine detail scanning, deep-hole scanning, and a built-in large-area photogrammetry system. This versatility makes it suitable for a wide range of applications, from industrial manufacturing to intricate design work.

2

High Precision and Speed

With an impressive scanning rate of up to 4,150,000 measurements per second and a high accuracy of up to 0.020 mm, the KSCAN-Magic II ensures fast and precise data collection. Its metrology-grade measurements are ideal for detailed and accurate 3D modeling and inspection.

3

Adaptability to Various Environments

The KSCAN-Magic II is uniquely designed to operate effectively in diverse conditions. Its capability to scan different materials, including reflective and black surfaces, and its adaptability to environmental factors like temperature and humidity, make it a robust tool for various industrial and creative applications.

Technical Specifications

TypeKSCAN-MagicKSCAN-Magic Ⅱ
Scan modeUltra-fast scanning11 blue laser crosses17 blue laser crosses
Hyper-fine scanning7 blue parallel laser lines
Large-area scanning11 parallel infrared laser lines
Deep-hole scanning1 extra blue laser line
Accuracy
Up to 0.020 mm
Scanning rate up to2,700,000 measurements/s4,150,000 measurements/s
Scanning area up to1440 mm × 860 mm
Laser classCLASS Ⅱ (eye-safe)
Resolution up to0.010 mm
Photogrammetry systemScanning area3760 mm × 3150mm
Depth of field2500 mm
Standalone accuracy0.015 mm + 0.030 mm/m
Volume accuracyWork with 1m reference bar0.015 mm + 0.020 mm/m
Work with MSCAN-L150.015 mm + 0.012 mm/m
Stand-off distance300 mm
Depth of field925 mm
Output formats.stl, .obj, .ply, .asc, .igs, .txt, .mk2, .umk and etc.
Operating temperature range-10℃-40℃
Interface modeUSB 3.0
PatentsCN204329903U, CN104501740B, CN104165600B, CN204988183U, CN204854633U, CN204944431U, CN204902788U, CN105068384B, CN105049664B, CN204902784U, CN204963812U, CN204902785U, CN204902790U, CN106403845B, CN209197685U, CN209263911U, CN106500627B, CN106500628B, CN206132003U, CN206905709U, CN107202554B, CN209310754U, CN209485295U, CN209485271U, CN305446920S, CN209991946U, US10309770B2, KR102096806B1,KR102209255B1, US10914576B2
blank

Discover everything you need to know about the SCANTECH KSCAN-Magic II with our comprehensive specification breakdown.

Download Brochure (PDF)

Frequently Asked Questions

The KSCAN-Magic II is a versatile 3D scanner that combines infrared and blue lasers, offering five standard operating modes for diverse applications. These modes include large-area scanning with parallel infrared lasers, ultra-fast scanning with blue laser crosses, hyperfine scanning with blue parallel lasers, deep-hole scanning with a single blue laser, and a built-in large-area photogrammetry system​​​​.

The KSCAN-Magic II boasts a scanning rate of up to 4,150,000 measurements per second with an accuracy of up to 0.020 mm. It features a large scanning area of 1440 mm × 860 mm and a depth of field of 925 mm, ensuring efficient and accurate data collection across various object sizes​​​​.

The KSCAN-Magic II is designed to operate effectively in diverse conditions. It can scan various materials, including reflective and black surfaces, and adapts well to environmental factors like temperature and humidity, making it suitable for a wide range of industrial and creative applications​​.

The KSCAN-Magic II includes optional modules for intelligent edge inspection, contact probing, and pipe measurement. It is also compatible with automated 3D inspection systems, enhancing its versatility and applicability in different industrial contexts​​​​.

The KSCAN-Magic II supports various output formats, including .stl, .obj, .ply, .asc, .igs, .txt, .mk2, .umk, and others, providing flexibility in data usage and compatibility with different software and systems​​.

Yes, the built-in infrared photogrammetry system of the KSCAN-Magic II, with a shooting area of 3760 mm × 3150 mm, is specially designed for scanning large-sized objects efficiently without compromising accuracy​​.
