Scanology NimProbe Compact Optical 3D Probing System

Only Left

Scanology NimProbe Compact Optical 3D Probing System

Meet NimProbe: a compact optical 3D probing system that fuses high-precision probing with handheld laser scanning—delivering metrology-grade results up to 0.059 mm at 3.5 m, with wired or truly wireless operation. Ready in about a minute and rugged for shop floors or outdoor sites, the i-Probe + i-Tracker combo accelerates inspection from fixture verification to GD&T on large parts with tap-to-switch probing/scanning and real-time compensation.

Categories: 3D Scanners, SCANOLOGY

Only Left

Schedule a Demo

Get 5% Off on your first order of 3D scanning accessories

Setup, Support & Training Included by certified engineers

Versatile & Reliable

NimProbe comes with stylus and corner extension rods of of different types to meet the needs of various applications. From intricate curved surfaces to precision large parts, NimProbe delivers reliable measurements—every time. It is built for stability and reliability, unaffected by vibration, temperature, humidity, or lighting conditions. With dynamic measurement and real-time position compensation, it maintains high accuracy even in complex workshop environments or outdoor settings.

All in One & Easy to Use

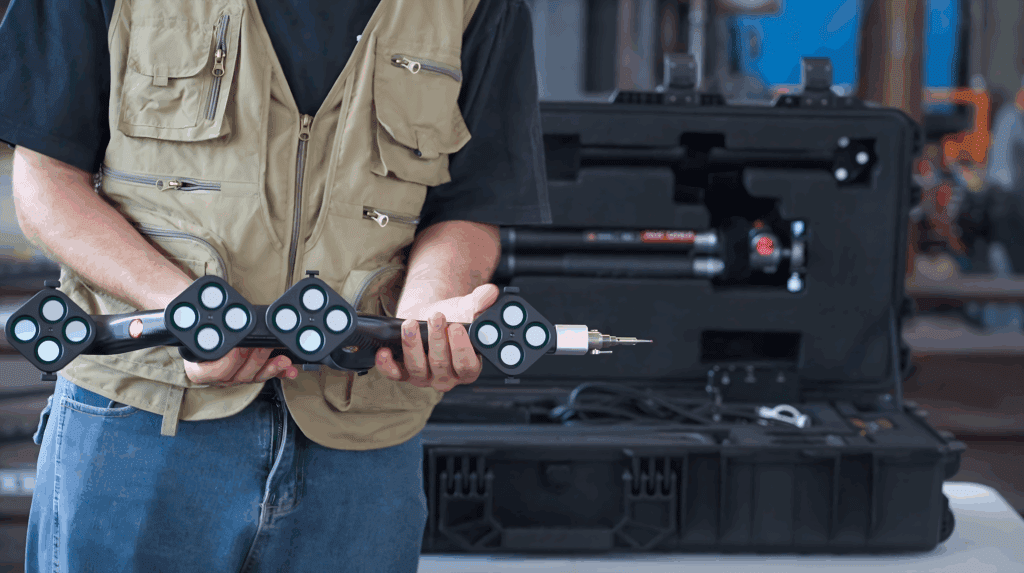

NimProbe is lightweight and portable, with the entire system packed into a single case for easy transport and setup. Ready in just one minute, it instantly becomes a mobile measurement station—delivering fast, efficient inspection in workshops, outdoor sites, and other challenging environments.

Seamless Probing to Scanning

NimProbe redefines measurement efficiency with the power of two-in-one. By merging high-precision probing with handheld laser scanning, it breaks free from the limits of traditional probe systems. Its tracker doubles as a handheld 3D scanner, capturing point clouds with speed and precision, while DefinSight software unifies scan and probe data in real time. Switch effortlessly between scanning and probing to handle any measurement task with ease. Smarter, faster, and more versatile, NimProbe streamlines inspection workflows and adapts seamlessly to third-party platforms—driving the future of modern, intelligent manufacturing.

Probing Without Limits

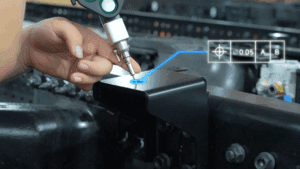

With a 500-mm probe length, the i-Probe easily accesses reference holes, hidden points, and other hard-to-reach areas. Intelligent occlusion compensation algorithm ensures accurate results even when some of its markers are blocked. This makes it the perfect choice for measuring automotive parts, aerospace components, pipelines, holes, and irregular parts.

Review the details of the SCANOLOGY NimProbe Compact Optical 3D Probing System within this comprehensive specification breakdown.

Download Brochure (PDF)

Technical Specifications

Type	NimProbe
Volumetric accuracy (3.5m)	0.059 mm
Volumetric accuracy (4.2m)	0.072 mm
Measurement distance (per tracker)	4.2 m
Part size range (recommended)	0.1 m ~ 6 m
Dimensions of i-Probe	51014589 mm
Weight of i-Probe	700 g
Operating temperature range	0 ~ 45°C
Operating humidity range (non-condensing)	10 ~ 90% RH
Connection	Wired and wireless
Number of targets	16
Patents	ZL201520680513.1, ZL202210065778.5, ZL202221475584.4, ZL202221766958.8,
	ZL202320545878.8
