Scantech TrackScan-P550

Scantech TrackScan-P550

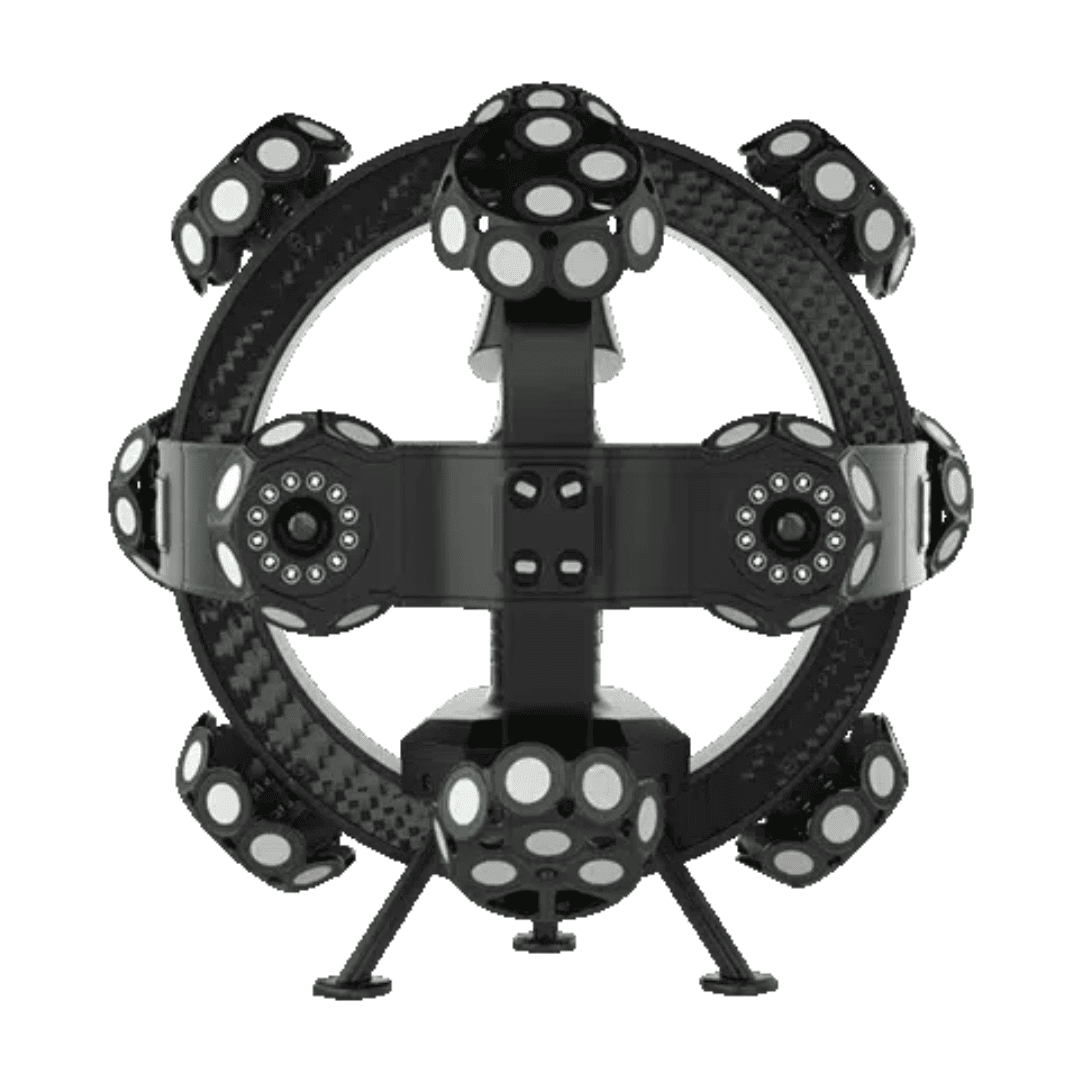

The Scantech TrackScan-P550 is a versatile 3D measurement system, featuring a portable scanner and optical tracker i-Tracker.

It excels in large-scale object scanning, making it valuable for industries like aerospace, automotive, and mold manufacturing. With additional modules, it can inspect various features, conduct precise contact measurements, and even enable automated 3D inspection when mounted on a robot arm.

  • Target-free 3D Scanning
  • Ultra-fast Measurement
  • Edge Detection
  • Extendable Measuring Volume

Categories: ,

Get 10% Off on your first order of 3D scanning accessories

Setup, Support & Training Included by certified engineers

Precision without Targets

The Scantech TrackScan-P550 is equipped with advanced optical tracking technology and high-resolution cameras, eliminating the need for reference targets during precision measurements.

Precise Edge Detection

Scantech TrackScan features a stand-out function of instant edge detection. Users can inspect circles, grooves, and machined holes of stamping parts in various finishes on the site without having to import original CAD models.

The efficient edge detection is enabled thanks to its gray value measurement and optional auxiliary light module. Good measurements are ensured by delivering accurate and repeatable hole positions and diameters.

Unrivaled-Fast & Detail-Maker

By freely switching between multiple working modes, the Scantech TrackScan fits different scanning situations with an accuracy of up to 0.025 mm and an ultra-fast measurement rate of up to 2,600,000 measurements/s. Its 7 parallel blue laser lines perform well for capturing details. A single blue laser line aims to collect 3D data of deep holes and hard-to-reach areas efficiently.

blank

Optical Tracking for Instant 3D Scanning and Strong Adaptability

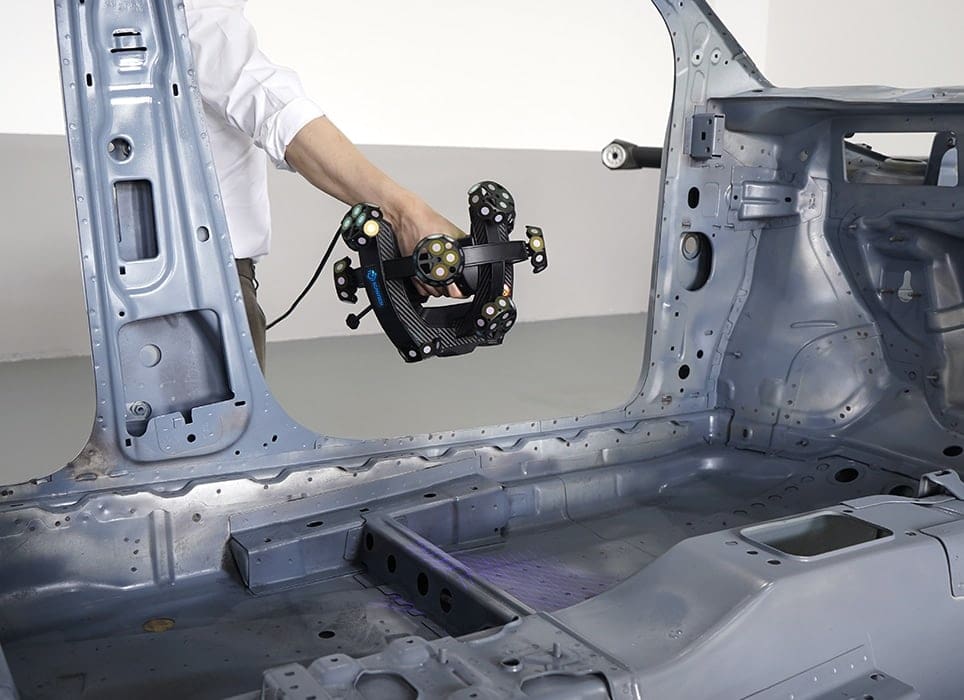

Scantech TrackScan-P550 stands out with its optical tracking, enabling immediate scanning without the need for adhesive targets, resulting in enhanced efficiency and cost reduction. Constructed from aerospace-grade materials, this scanner offers durability and reliability. It excels in maintaining smooth operation, even in the face of vibrations and thermal fluctuations, thanks to its robust anti-interference capability. Additionally, TrackScan excels at capturing 3D data from reflective and dark surfaces, thanks to its advanced algorithm.

blank

See for yourself the remarkable capabilities of the Scantech TrackScan-P550 with a live demo.

Experience the Scantech TrackScan-P550 in Action with a Live Demo! Want to witness the incredible capabilities of TrackScan-P550 firsthand? Schedule a live demo now!

Why Choose The Scantech TrackScan-P550?

1

Efficient Optical Tracking

Scantech TrackScan-P550 offers instant 3D scanning with its optical tracking technology, eliminating the need for target placement and greatly enhancing scanning efficiency while reducing costs.

2

Robust Adaptability

Constructed from aerospace-grade materials, this scanner is highly durable and resistant to interference from vibrations or thermal fluctuations. Its advanced algorithms enable the capture of accurate 3D data, even on reflective or dark surfaces.

3

Versatile Applications

Designed for large-scale object scanning, Scantech TrackScan-P550 finds applications in diverse industries, including aerospace, automotive, rail transport, and mold manufacturing. It can be customized and paired with additional modules for various inspection and measurement tasks, making it a versatile solution for quality control, product development, and reverse engineering.

Technical Specifications

TrackScan-P550
Ultra-fast scanning21 blue laser crosses
Hyperfine scanning7 blue parallel laser lines
Deep hole scanning1 blue laser line
Accuracy(1)Up to 0.025 mm
Measurement rateUp to 2,600,000 measurements/s
Scanning areaUp to 500 mm × 600 mm
Laser classClassⅡ (eye-safe)
ResolutionUp to 0.020 mm
Volumetric accuracy(2): 10.4 m³0.060 mm
Volumetric accuracy(2): 18.0 m³0.075 mm
Volumetric accuracy (With MSCAN photogrammetry system)0.044 mm + 0.012 mm/m
Single-point repeatability of portable CMM T-Probe0.030 mm
Hole position accuracy0.050 mm
Object Size (Recommend)100 mm–8000 mm
Stand-off distance300 mm
Depth of field400 mm
Output formats.stl, .ply, .obj, .igs, wrl, .xyz, .dae, .fbx, .ma, .asc or customized
Operating temperature range-10°C–40°C
Operating humidity (Non-condensation)10%–90% RH
Interface modeUSB 3.0
CertificationCE, UL
PatentsCN106500627,CN106500628,CN206132003U,CN204854633U,CN204944431U,CN204902788U,CN204963812U,CN204902785U,CN106403845,US10309770B2,CN204854633U,CN105068384B,CN105049664B,CN106403845B,CN214375417U,CN214379242U,CN214379241U,CN109000582B,CN112802002B,CN210567185U,CN211121096U,CN214149174U,CN114001671B,CN114001696B,CN114554025B,CN114205483B,US10309770B2,US11060853B2,KR102096806B1,EP3392831B1
blank

Discover everything you need to know about the TrackScan-P550 with our
comprehensive specification breakdown.

Download Brochure (PDF)

Frequently Asked Questions

The TrackScan-P Series offers dynamic 3D measurement, ensuring versatile applications from car manufacturing to aerospace industries.

With its large measurement volume and high precision, the series can scan various objects, from small mechanical parts to large aircraft.

No. The system features self-calibration, ensuring consistent accuracy without frequent manual calibration.

The series is best paired with Scantech’s proprietary software, ensuring smooth data processing and optimal scanning results.
