Scantech TrackProbe 3D Probing System

Scantech TrackProbe 3D Probing System

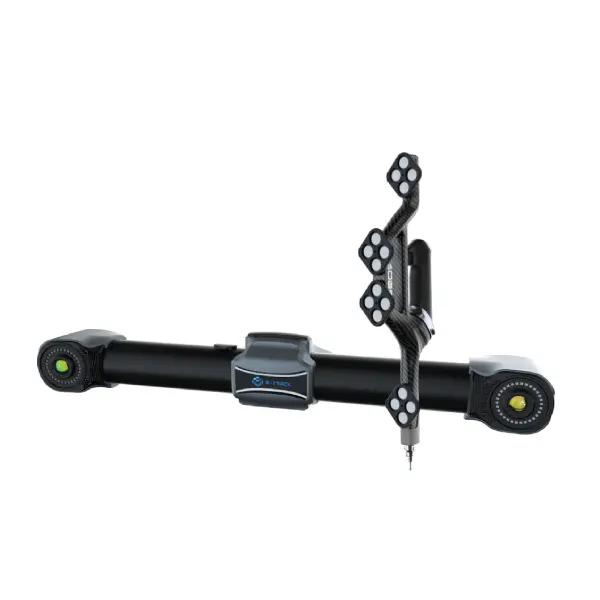

The TrackProbe 3D Probing System, combining a tracking i-Probe and an i-Tracker optical tracker, offers metrology-grade measurements for various applications.

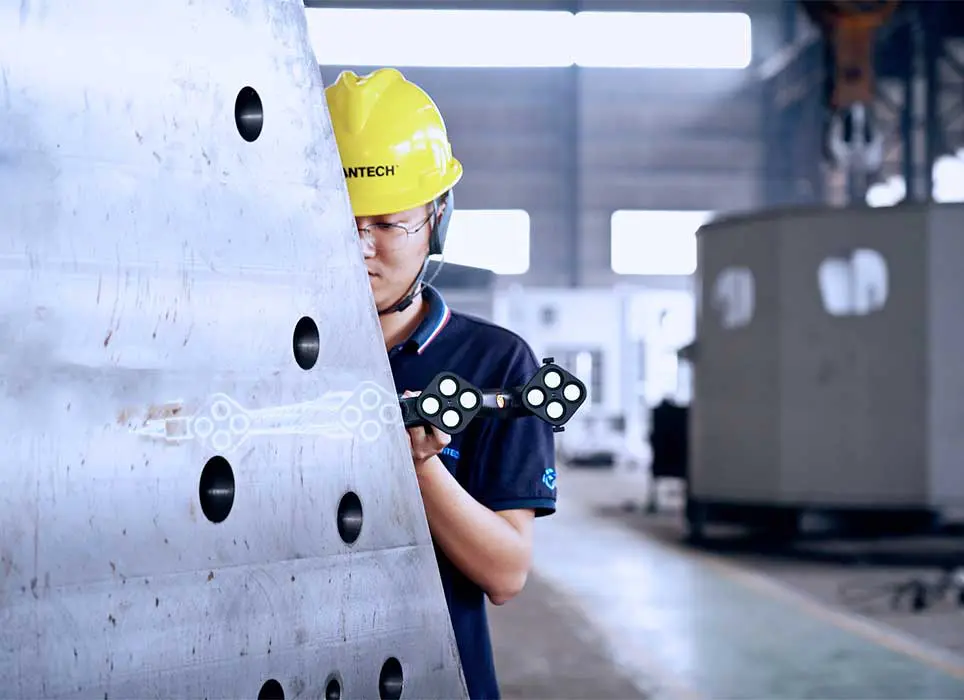

Designed for flexibility and precision, it excels in measuring parts at long distances and in challenging conditions, ideal for tasks like fixture adjustment and geometric inspection on the shop floor. Its extensive measurement range and ability to scan deep hidden points make it versatile for both small and large parts in diverse environments.

  • Metrology-Grade Precision
  • Extensive Measurement Range
  • Flexible and Portable

Categories: ,

Get 10% Off on your first order of 3D scanning accessories

Setup, Support & Training Included by certified engineers

Scantech TrackProbe 3D Probing System: Precision and Versatility in Measurement

The Scantech TrackProbe 3D Probing System combines a tracking i-Probe with an i-Tracker for high-precision, metrology-grade measurements. Capable of accurately measuring objects up to 10 meters away, it excels in capturing intricate details of both small and large parts. This handheld system is portable and flexible, offering wired and wireless data transfer for efficient on-site use. Ideal for detailed inspections in automotive, aviation, and engineering industries, the TrackProbe is a top choice for professionals needing precise and versatile 3D measurements.

Innovative Engineering of the TrackProbe System

The Scantech TrackProbe 3D Probing System stands as a hallmark of innovative engineering in the field of precision measurement. Developed with a focus on metrology-grade accuracy, the system incorporates a synergistic combination of the i-Probe and i-Tracker optical tracker. This duo ensures highly accurate measurements over a wide range of distances, making the system versatile for various industrial applications. The i-Probe’s advanced design allows for detailed measurement of complex structures and hard-to-reach areas, making it a valuable tool in precision-critical industries such as automotive and aerospace. Its functionality is further enhanced by the system’s adaptability to measure both small and large parts with equal precision.

Flexibility and User-Friendly Design

Scantech’s commitment to practicality and ease of use is evident in the portable and ergonomic design of the TrackProbe. This handheld system is not just designed for accuracy but also for ease of operation in diverse environments. It offers the flexibility of both wired and wireless data transfer, catering to the dynamic needs of various on-site measurement scenarios. The integration with Scantech’s advanced 3D software, TViewer, allows for a seamless transition between scanning and probing, providing a smooth, uninterrupted workflow. This user-friendly design, combined with the system’s robust performance, makes the TrackProbe an essential tool for professionals seeking a reliable and efficient solution for high-precision 3D measurements.

blank

See for yourself the remarkable capabilities of the Scantech TrackProbe 3D Probing System with a live demo

Elevate your measurement capabilities with the Scantech TrackProbe 3D Probing System. Experience its advanced features and unparalleled precision firsthand. Click below to request a live demo and see how the TrackProbe can transform your industrial measurements. Don't miss this opportunity to witness metrology-grade accuracy in action.

Request Demo

Why Choose Scantech TrackProbe 3D Probing System?

1

Metrology-Grade Accuracy

The TrackProbe offers exceptional precision in measurements, crucial for detailed inspection and analysis. Its combination of the i-Probe and i-Tracker ensures highly accurate results, suitable for precision-critical tasks in various industries.

2

Versatile Measurement Range

Equipped to handle both small and large parts, the TrackProbe can accurately measure objects up to 10 meters away. This extensive range makes it adaptable to a wide array of measurement scenarios, from automotive parts to large industrial machinery.

3

Portability and Ease of Use

Designed with user convenience in mind, the TrackProbe is a handheld, lightweight system that offers both wired and wireless data transfer. This flexibility allows for easy use in diverse settings, ensuring efficient and uninterrupted workflow for on-site measurements.

Technical Specifications

TypeTrackProbe 49
Volumetric accuracy10.4 m³ (Tracking distance 3.5 m)0.049 mm (0.0019 in)
28.6 m³ (Tracking distance 5.0 m)0.067 mm (0.0026 in)
49.0 m³ (Tracking distance 6.0 m)0.089 mm (0.0035 in)
Measurement distance (per tracker)Max 10 m (393.7 in)
Part size range (recommended)0.1 m-12 m (3.9 in × 472.4 in)
Camera pixel of i-Tracker25 MP
Dimensions of i-Probe 500510*145*89 mm (20.1 × 5.7 × 3.5 in)
Weight of i-Probe 500700 g (1.54 lb)
Operating temperature range0–45°C (32℉-113℉)
Operating humidity range (non-condensing)10–90% RH
ConnectionWired and wireless
Number of targets16
PatentsZL201520680513.1,
ZL202210065778.5,
ZL202221475584.4,
ZL202221766958.8,
ZL202320545878.8
blank

Discover everything you need to know about
The Scantech TrackProbe 3D Probing System with our
comprehensive specification breakdown.

Download Brochure (PDF)

Frequently Asked Questions

A metrology-grade measurement system combining a tracking i-Probe and an i-Tracker optical tracker, designed for precision and flexibility in various applications, including fixture adjustment and geometric inspection.

Metrology-grade precision, extensive measurement range, flexible and portable design, and the ability to scan deep hidden points.

By integrating a tracking i-Probe with an i-Tracker for high-precision measurements and capturing intricate details of both small and large parts.

Its portable and ergonomic design, ease of operation in diverse environments, and both wired and wireless data transfer flexibility.

Yes, its advanced design allows for detailed measurement of complex structures and hard-to-reach areas, making it suitable for precision-critical industries.

Automotive, aviation, engineering, and other industries requiring detailed inspections and high-precision 3D measurements.

It offers a seamless transition between scanning and probing, providing a smooth workflow and adaptability to measure both small and large parts.

The system integrates with Scantech’s advanced 3D software, TViewer, for efficient data processing and analysis.
