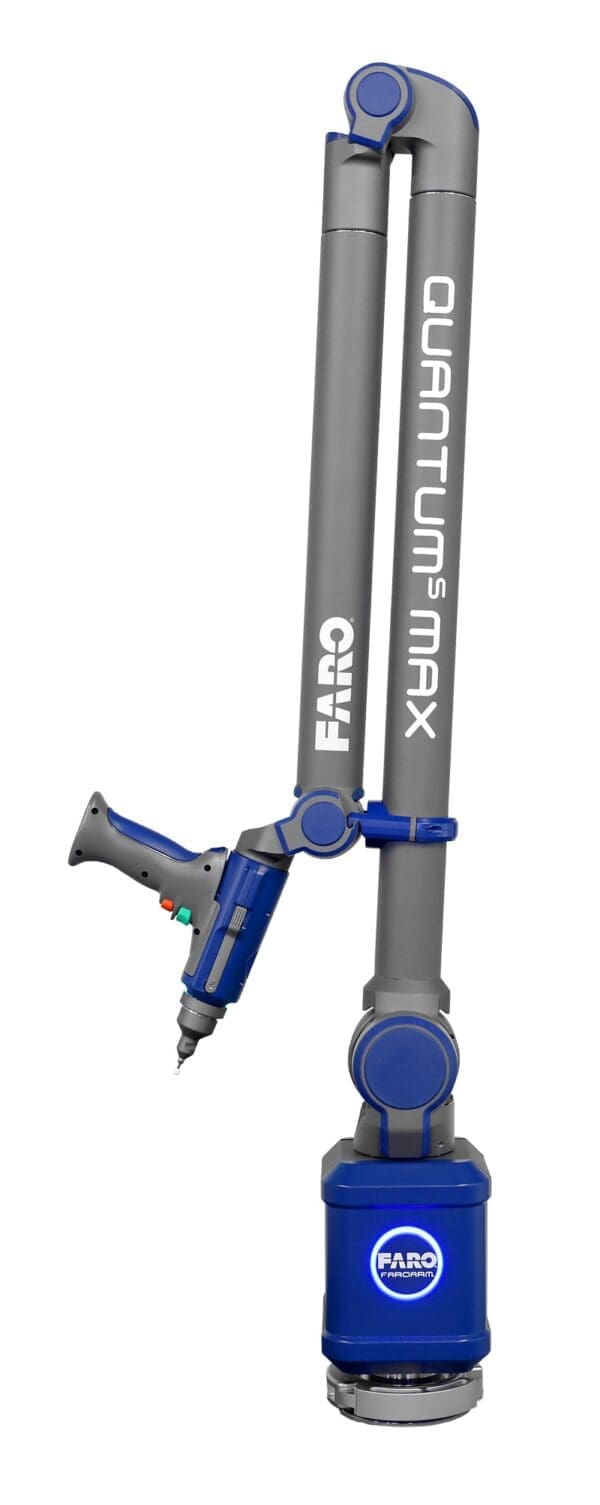

FARO Quantum Max Arms is the ultimate in portable measurement technology.

Combining precision and versatility, it offers high-accuracy scanning, a robust design, and user-friendly operation for various applications. Whether for quality control, inspection, or reverse engineering, this arm sets the standard for portable metrology, ensuring exceptional accuracy and efficiency.

  • Maximum Versatility
  • Extended Reach: 8-Axis arm allows for faster measuring with less effort
  • Maximum Performanse
  • Maximum Reach

Categories: ,

Get 5% Off on your first order of 3D scanning accessories

Setup, Support & Training Included by certified engineers

The Global Standard in Contact & Non-contact Measurement Arm Technology

Sometimes a part or tool is so complex, you can’t use contact probes to capture all of its measurements. But lasers do the job with exceptional speed and accuracy. In these cases, leading manufacturers rely on the FARO Quantum Max ScanArms, which combine the measurement capabilities of a Quantum Max FaroArm portable coordinate measuring machine (CMM) with the non-contact functionality of a laser line probe. The Quantum Max also offers three LLPs that optimize accuracy, speed or a blend of both, depending on project need. Whichever LLP you choose, 3D ScanArms capture precise measurements in nearly any environment, from the factory floor to the field.

Maximum Versatility

The new Quantum Max offers 2 times the versatility of previous models. Dual kinematic seats allow for hard probe and LLP interchangeable mounting positions to easily move the LLP from top to front mount, enabling greater access to small spaces or hard-to-reach areas without the need to recalibrate. The quick-release handle also offers dynamic holding options.



blank

Extended Reach: 8-Axis Arm Allows for Faster Measuring With Less Effort

Read about the latest revolution in 3D Portable Measurement Arms – the FARO 8-Axis Arm – which offers an additional rotational axis that plugs directly into the FaroArm product family and results in a seamlessly integrated, high-accuracy additional axis that requires no additional setup time or effort. Measurement time is reduced by up to 40% versus 7-axis scanning.

FARO Arm at Work for Metrology and 3D Inspection

Maximum Performance

Three FaroArm models offer basic, standard, and premium performance options—available in various working volumes from 2.0m to 4.0m. Improved rigidity and stability deliver optimized accuracy and repeatability with superior performance while maintaining shop-hardened ruggedness for use in the harshest factory environments. The new 2.0m working volume arm delivers the best accuracy in its size category.

blank

Maximum Reach

Each FaroArm model comes with up to 25% longer reach, offering more comfortable articulation for a better extension over and around larger objects positioned within its specified working volume. Combined with the FARO exclusive 8-Axis Max rotary worktable, the need to relocate or reposition the device is virtually eliminated—and inspections can be completed in a fraction of the time.

blank

See for yourself the remarkable capabilities of the FARO Quantum Max Arms with a live demo.

Unlock the Precision of the FARO Quantum Max Arms! Schedule a Live Demo Now and Experience Next-Level Portable Metrology.

Why Choose The FARO Quantum Max Arms?

When precision is paramount and measurement versatility is essential, FARO Quantum Max Arms are the ultimate choice for quality control and inspection tasks. Their unmatched accuracy, reaching down to 9 microns, guarantees precise and repeatable measurements, ensuring the highest quality standards for your components. The extended measurement range, ranging from 2.5 to 4.5 meters, allows these arms to tackle a wide range of part sizes, eliminating the need for multiple measuring devices and simplifying your measurement process.

1

Unmatched Precision

FARO Quantum Max Arms stand as a testament to precision, redefining accuracy standards with an astonishing capability to achieve measurements as low as 9 microns (0.0009 mm). These portable Coordinate Measuring Machines (CMMs) instill confidence in measurement results, delivering reliability and repeatability, even when dealing with the most intricate and demanding components.

2

Extended Measurement Range

Quantum Max Arms offer an exceptional measurement range spanning from 2.5 to 4.5 meters. This broad range grants these portable CMMs the versatility to effortlessly handle components of varying sizes, from small and intricate parts to sizable assemblies. By eliminating the need for multiple measuring devices, Quantum Max Arms streamline the measurement process, enhancing efficiency and productivity.

3

Lightweight and Ergonomic Design

Crafted with user comfort in mind, Quantum Max Arms feature a lightweight and ergonomic design. This thoughtful approach ensures that operators can maneuver the arms with ease, reducing operator fatigue during prolonged measurement sessions. The ergonomic grip and well-balanced structure further enhance usability, making Quantum Max Arms an ergonomic and practical choice for precision measurement tasks.

Technical Specifications

Hardware Specifications
FaroArm
Operating Temperature 10C - 40C (50F - 104F)
Operating Humidity 95%, Non-Condensing
Power Supply 100-240 VAC, 47/63 Hz
8-Axis
Max Load Capacity 100kg (220 lbs)
Standard Plate Diameter 250mm (9.8in)
Weight 4.3kg (9.5 lbs)
blank

Discover everything you need to know about the FARO Quantum Max Arms with our
comprehensive specification breakdown.

Download Brochure (PDF)

Frequently Asked Questions

The Quantum Max FaroArm Series is designed for high-precision 3D measurement and inspection tasks. It is commonly used in automotive, aerospace, and metal fabrication industries for applications ranging from quality control and inspection to rapid prototyping and reverse engineering.

Equipped with FARO’s patented warm-up-free Invarium™ Zero-Zero Encoders, the Quantum Max provides consistent and accurate measurements even in challenging environments. This advanced technology eliminates the need for daily encoder warm-ups.

Absolutely. The Quantum Max is designed for indoor and outdoor use, boasting an IP52 rating for dust and water resistance. Its unique kinematic self-compensation feature also adjusts for any potential arm frame distortion, ensuring accuracy.

The FAROBlu™ Laser Line Probe, with its blue laser technology, allows non-contact scanning, which is ideal for capturing soft, fragile, or complex surfaces. It ensures faster scanning speed and higher resolution, seamlessly integrating with the arm’s tactile probing capabilities.

Hot-swappable batteries mean you can replace batteries without turning off the device or disrupting your workflow. This ensures continuous operation without needing external power or cords, maximizing productivity.

The Quantum Max employs the FARO SafeSpace™ technology, which not only ensures a stable and secure wireless connection but also provides alerts if there’s any risk of data loss or if the arm moves outside its safety zone.

While the Quantum Max integrates seamlessly with FARO’s CAM2 software for data analysis, inspection, and reporting, it’s also designed to be compatible with various third-party metrology software, ensuring flexibility in diverse industrial applications.

The Quantum Max prioritizes user comfort and ease of use. Features like the ergonomic handle, easy-to-reach buttons, lightweight design, and intuitive software interface make it user-friendly, reducing operator fatigue and ensuring efficient operations.
